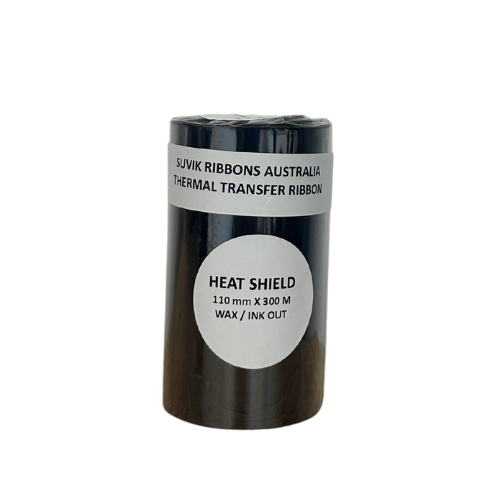

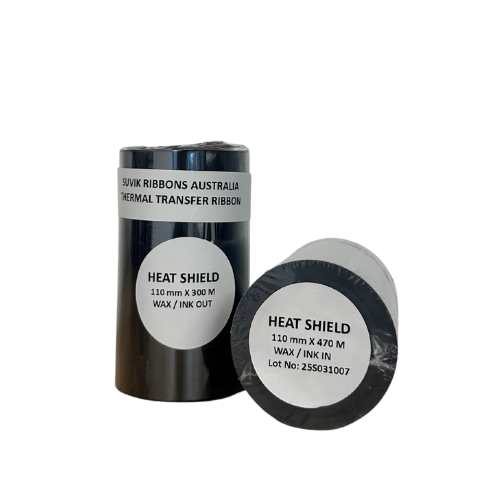

HEAT SHIELD is a Resin Enhanced Wax Ribbon which is very suitable for crisp, rotated barcodes and dark, durable images. This can be used as a "plug and play" alternative to other industry leading resin enhanced wax formulations. This wax rribbon offers our best all-around performance when considering optical density, image durability, print quality and wide receiver material latitude.
Technical specifications
Base film：BOPET
Total ribbon thickness (μm)：7.1±0.5
Storage conditions：-5°C~40°C，20%~85% Relative Humidity
Base film thickness (um)：4.5±0.2
Ink melting point：85°C
Shelf life：1year
Printing characteristics
ink color：Black
Color density：≥1.8 (test on X-Rite tester)
Abrasion resistance：≥20 times (200g weight, test on coated papers)
Application scenario
Commercial retail、Storage、Logistics、Nursery gardens and flowers
Fixed assets、Clothing tag 、Pre packaging、Production lines
Recommended substrates
Coated Papers100%
Rough Papers100%
Tags100%
Thermal Transfer Papers100%
Films100%
Synthetics80%
Recommended printing conditions
Printer mode：Flat head
Print speed：≤6ips
